Grade Smarter with Hydraulic Tilt Control

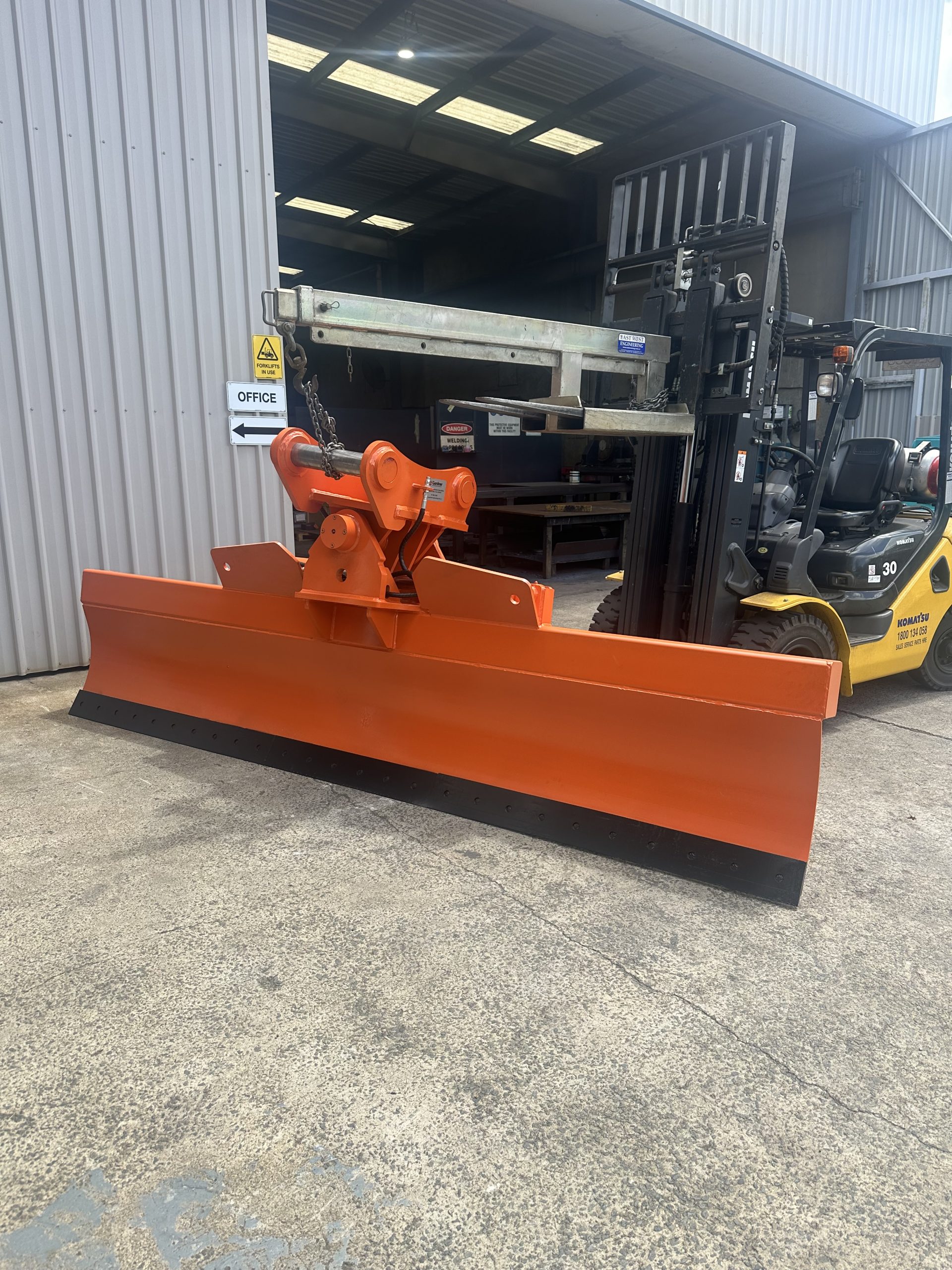

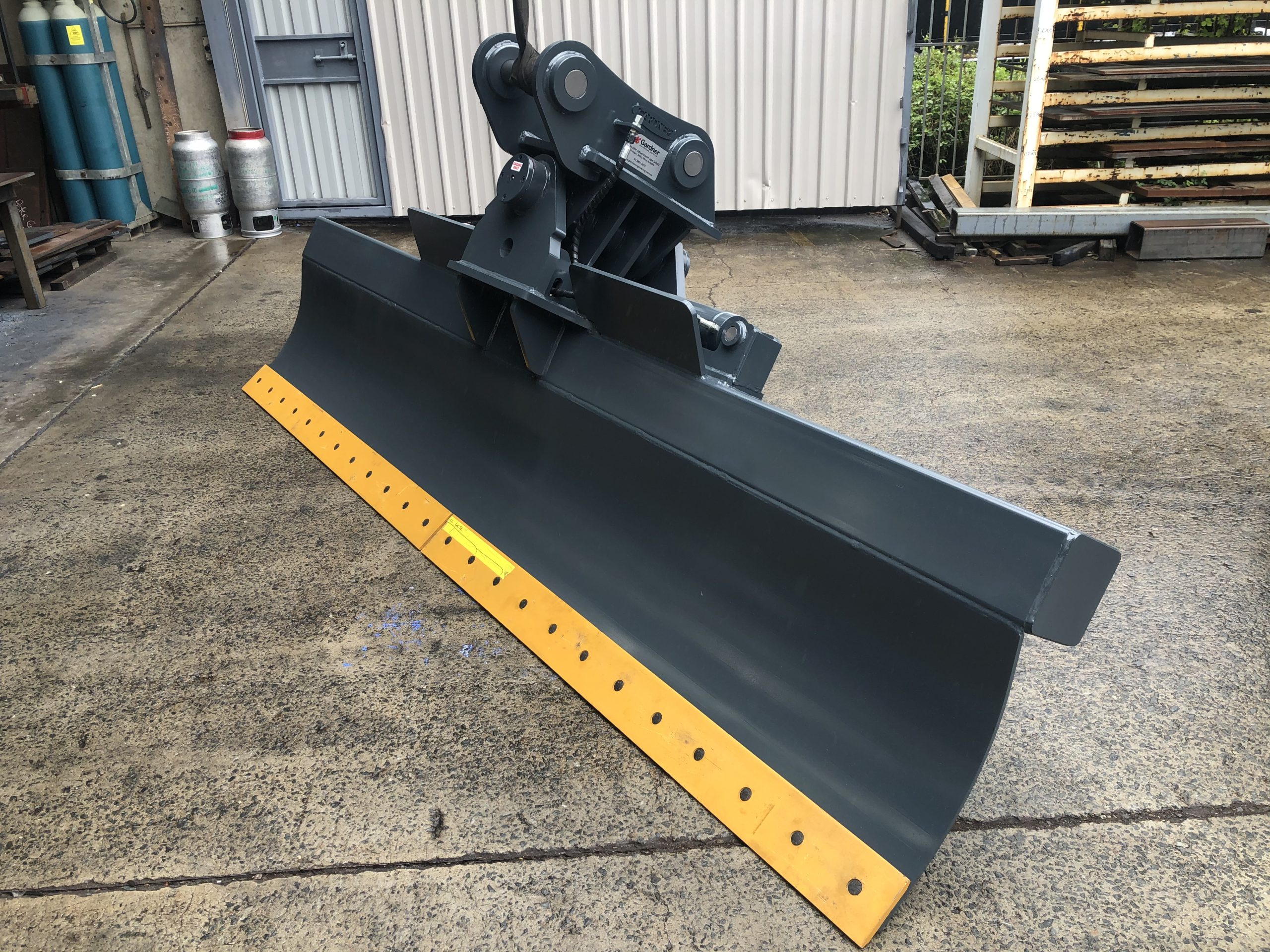

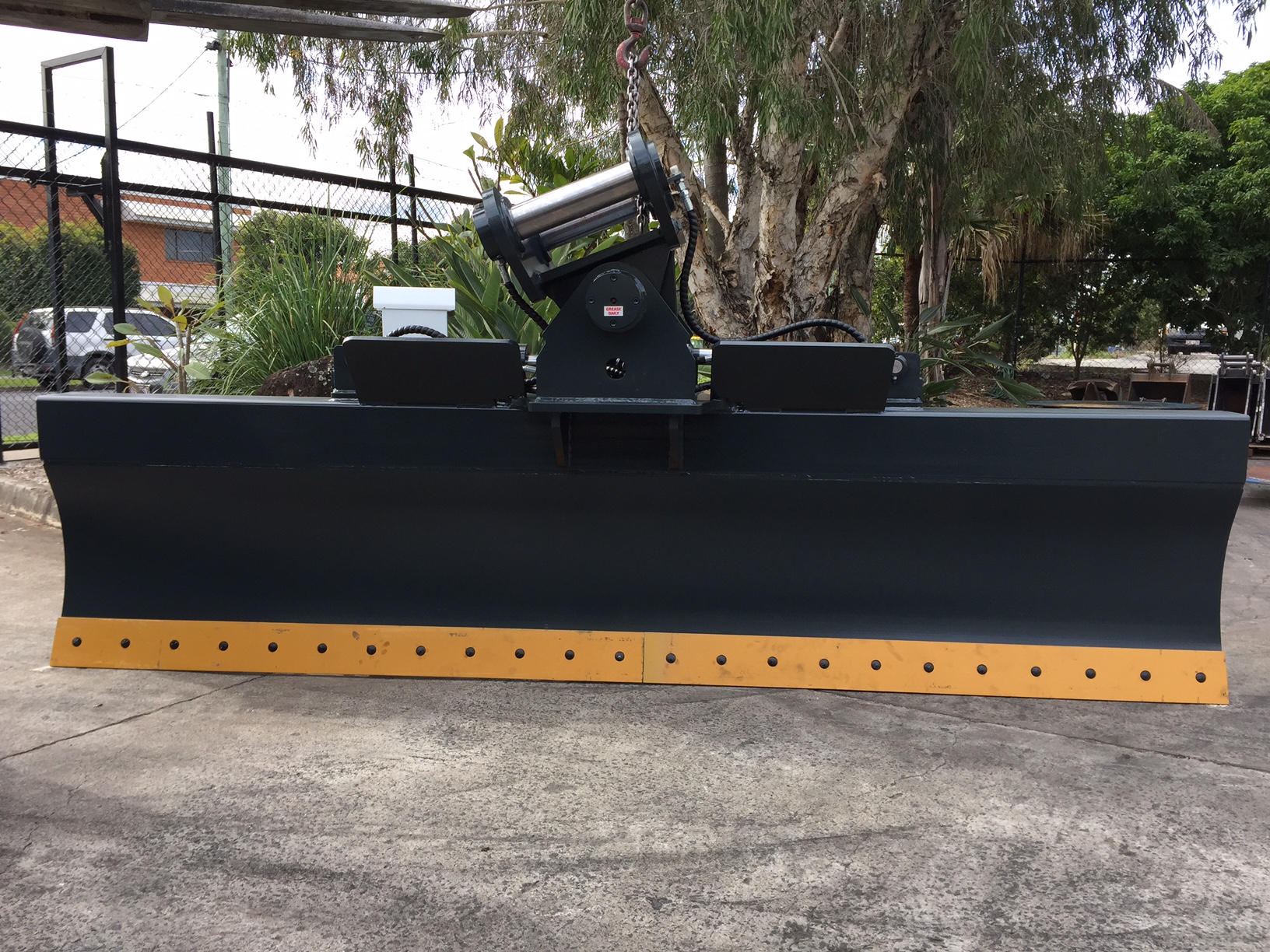

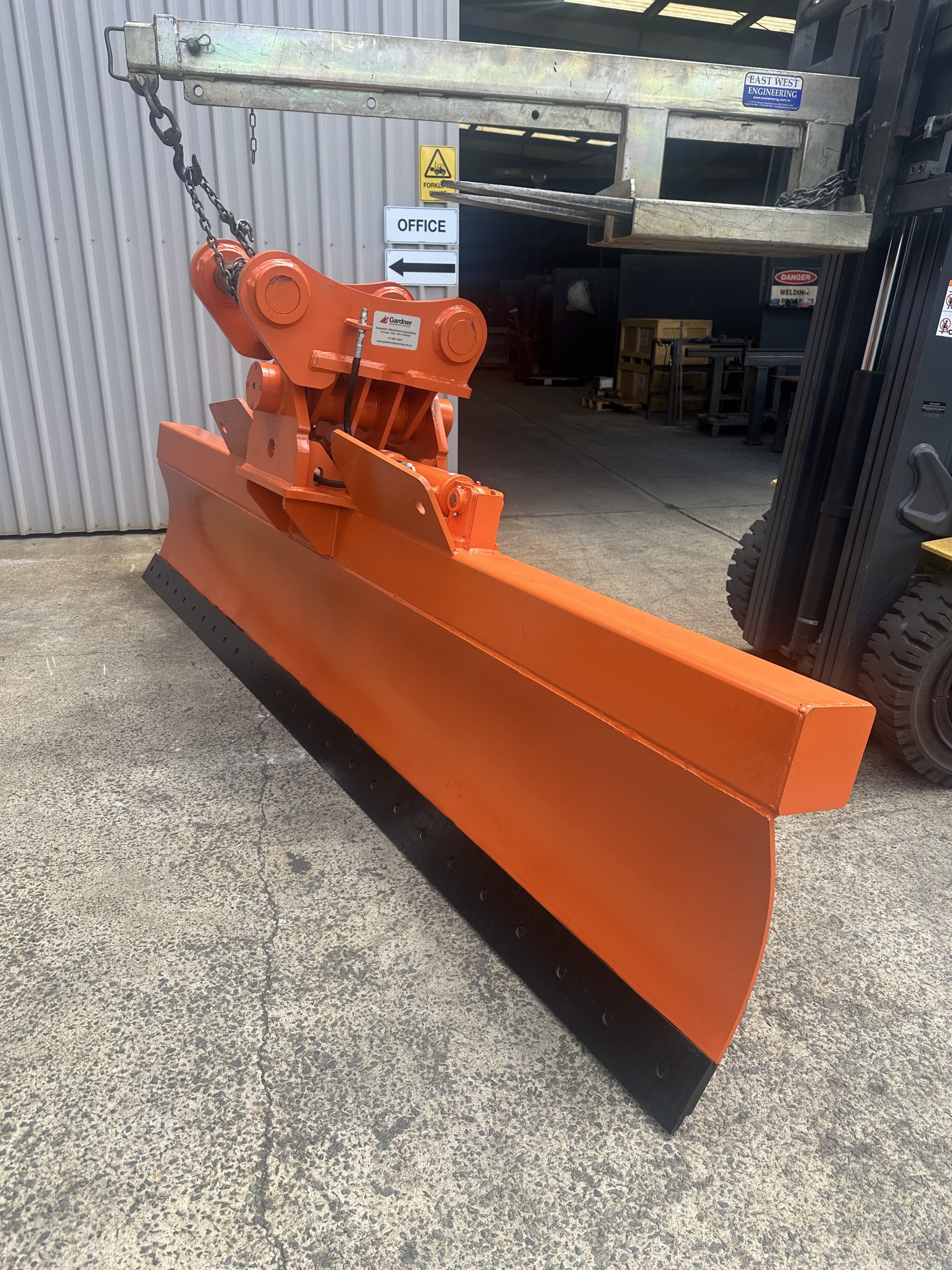

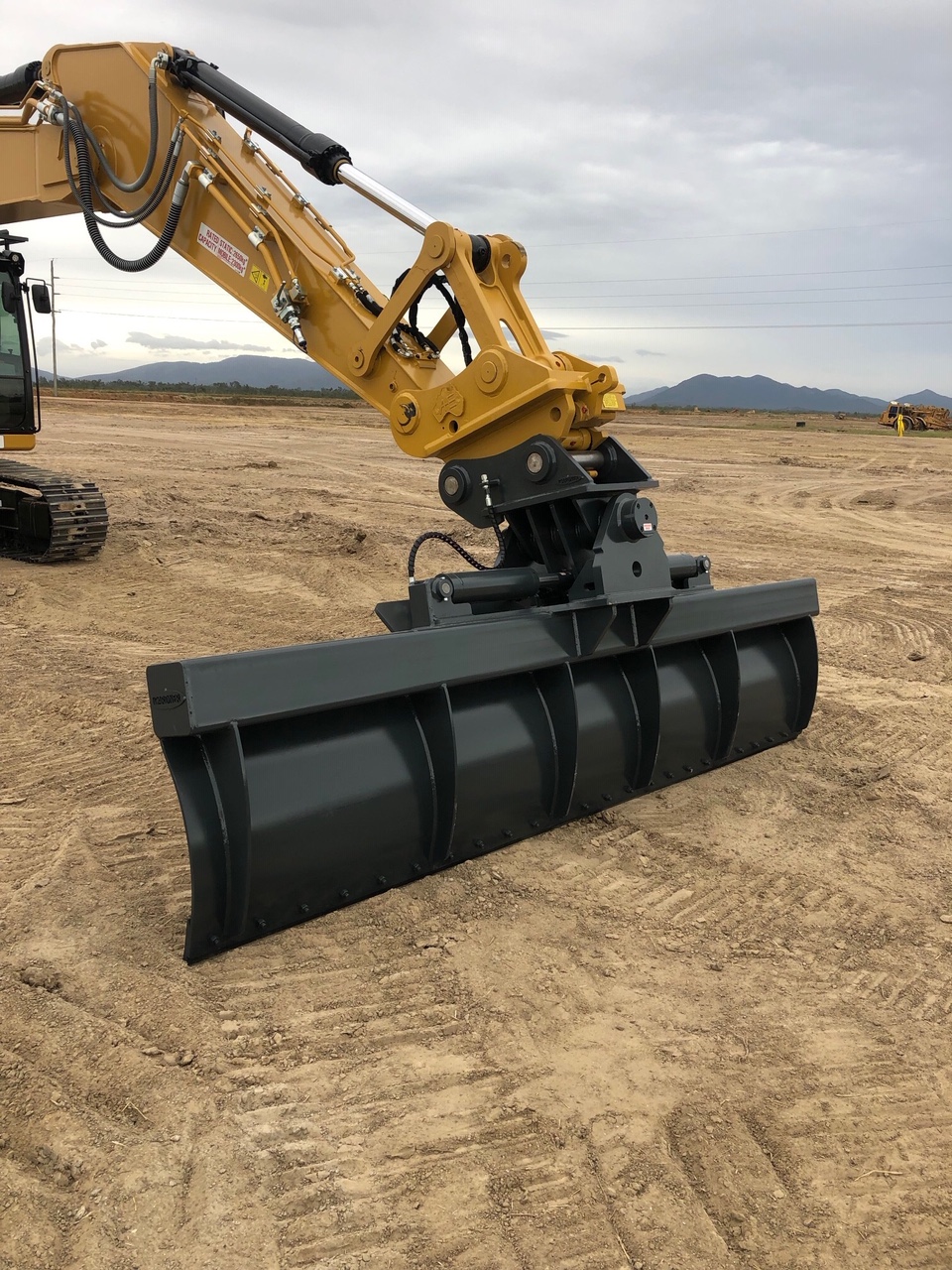

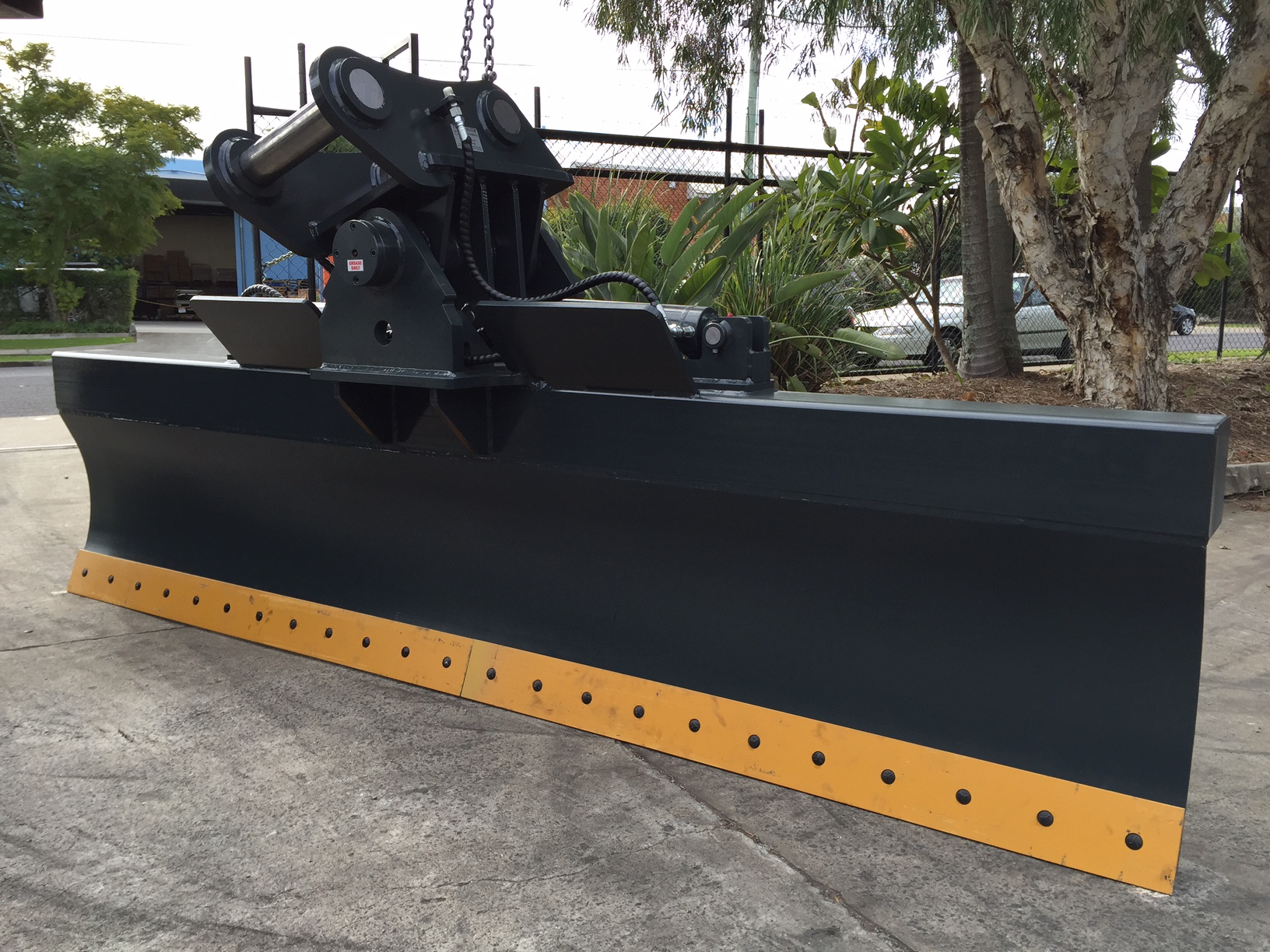

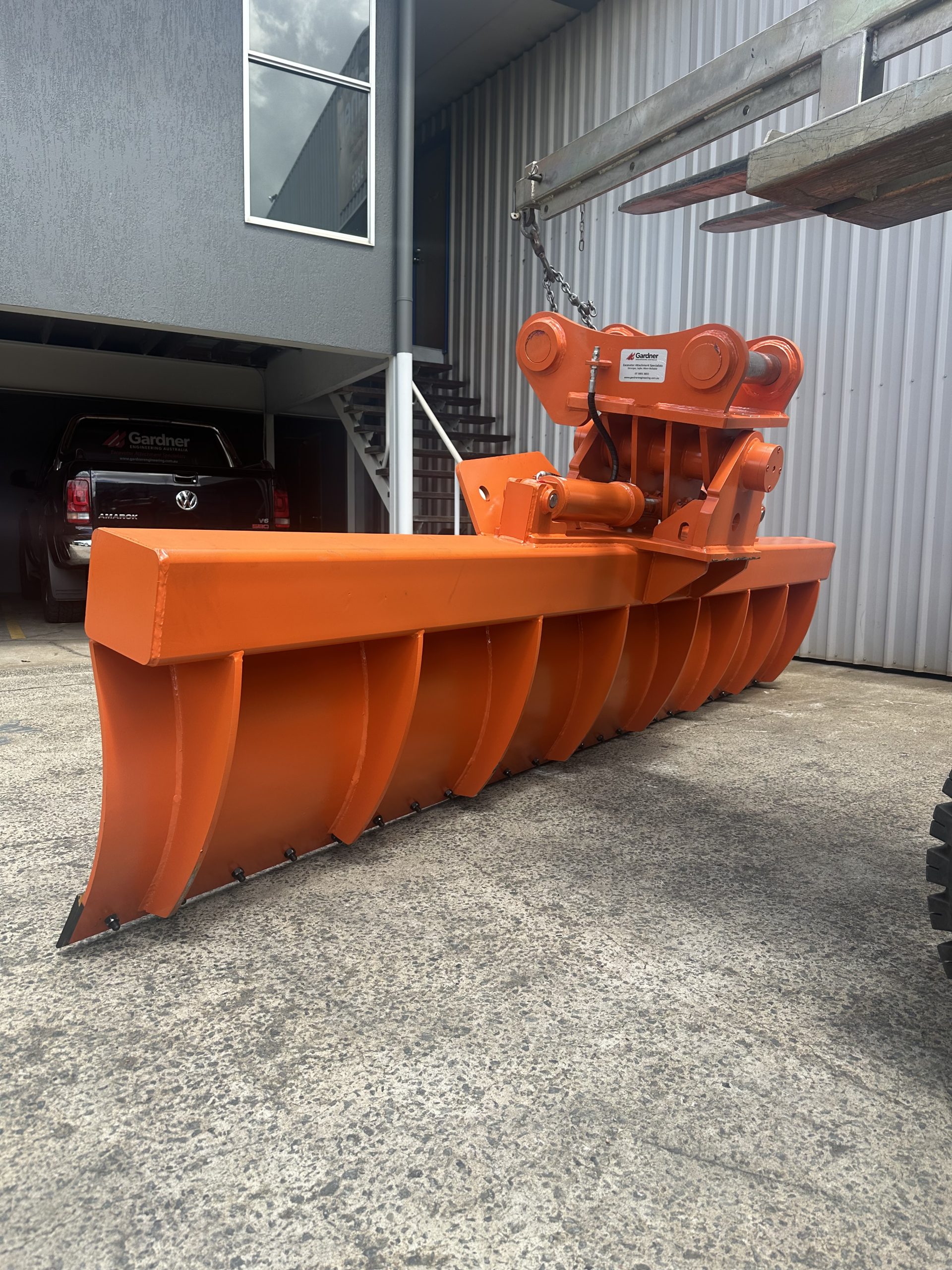

Gardner Engineering’s Tilting Grader Blades give you extra control for challenging surfaces and angled grading work. With the ability to hydraulically tilt the blade left or right, operators can contour and level ground without repositioning the machine.
Built in Australia using high-strength materials and available in a range of sizes, these blades help contractors increase productivity and achieve consistent, high-quality finishes—especially on sloped or uneven terrain.
What It’s Used For:
-
- Grading batters and angled surfaces
- Sloped trench backfilling
- Road construction and maintenance
- Shaping berms, swales, and contours
- Detailed landscaping and civil works
Features & Benefits:
-
- Hydraulic Tilting Function – Grade at an angle without shifting your machine
- Australian Made – Built tough for local job sites
- Heavy-Duty Construction – Hi-tensile steel body and blade
- Replaceable Cutting Edges – Optional bolt-on for long-term value
- Smoother Finishes – Enhanced flexibility for tighter tolerances
- Built to Suit – Customised to fit your machine and application
Technical Details:
-
- Hydraulic tilt mechanism with left/right angle control
- Suitable for excavators and backhoes from 1.5T to 30T+
- Constructed with wear-resistant, high-tensile steel
- Optional bolt-on or weld-on cutting edges
- Custom widths and pin setups available
- Designed and manufactured in Loganholme, QLD
- Compatible with most quick hitch and hydraulic systems
FAQS
How does the hydraulic tilt function work?
The Tilting Grader Blade features a hydraulic mechanism that allows the blade to tilt left or right, giving the operator full control over grading angles. This makes it easier to achieve consistent slopes and smoother finishes on complex surfaces.
What machines are compatible with Tilting Grader Blades?
Gardner Engineering’s Tilting Grader Blades are custom-built to suit excavators and backhoes from 1.5T to 30T+. Each unit is designed to fit your machine’s pin spacing, quick-hitch system, and hydraulic setup for easy installation and reliable operation.
Are the cutting edges replaceable?
Yes. These blades come with optional bolt-on or weld-on cutting edges, allowing for easy replacement and extended service life—ideal for operators working on abrasive surfaces or heavy-duty jobs.
How long does it take to manufacture and deliver a Tilting Grader Blade?
All Tilting Grader Blades are built to order in Gardner Engineering’s Loganholme, QLD workshop, with fast turnaround times and nationwide delivery. Lead times depend on your custom specifications, but we strive to deliver promptly without compromising quality.
